Brief introduction of jaw crusher:
Jaw crusher is mainly used for medium size crushing of various ores and bulk materials. It can crush materials with compressive strength less than 320 Mpa, which can be divided into coarse crushing and fine crushing. This series of products have complete specifications, and the feeding granularity is 125 mm to 1200 mm. It is a primary crushing equipment.

Principle of jaw crusher:
No matter what kind of jaw crusher, its working mode is driven extrusion type, and its working principle is basically the same: motor drives belt and pulley, through eccentric axis makes jaw move up and down, when the jaw rises, the angle between elbow plate and jaw becomes larger, thus pushing the jaw plate to approach the fixed jaw plate, at the same time, the material is squeezed to achieve the purpose of crushing; when the jaw moves down, the angle between elbow plate and jaw becomes larger. The angle between elbow plate and movable jaw decreases. The movable jaw plate leaves the fixed jaw plate under the action of pull rod and spring. At this time, the broken material is discharged from the lower mouth of the crushing chamber. With the continuous rotation of the motor, the jaw of the crusher is crushed and discharged periodically to realize mass production.

Jaw crusher features:
1. Deep jaw is broken and broken ratio is large.
2. Wearable parts have long service life and wear resistance.
3. Energy saving and environmental protection, less dust and less noise;
4. Precision manufacturing process, heat treatment process is adopted for core components such as spindle, fragile parts and bearings.
5. Strict use of welding frame for large jaw breakage to ensure reliable use of products;
6. All products have hoisting hooks for easy hoisting.

Jaw crusher parameters:

Model

Dimension of inlet
and outlet

(mm)

Maximum
feed

(mm)

Adjustment range
of discharge outlet

(mm)

Capacity

(t/h)

Power

(kw)

Weight

(t)

PE-150*250

150*250

130

10-40

0.96-4.8

5.5

0.81

PE-250*400

250*400

210

20-80

5-21

15

2.8

PE-400*600

400*600

340

40-100

16-64

30

6.5

PE-500*750

500*750

425

50-100

45-100

55

10.3

PE-600*900

600*900

500

65-160

48-120

55/75

15.5

PE-750*1060

750*1060

630

80-140

115-208

110

27.02

PE-800*1060

800*1060

650

100-200

136-228

110

28.4

PE-870*1060

870*1060

670

200-260

290-384

110

30.5

PE-900*1200

900*1200

750

100-200

144-304

132

50

PE-900*1200II

900*1200II

750

100-200

144-304

132

45.8

PE-1000*1200

1000*1200

850

195-265

315-342

132

50.6

PE-1200*1500

1200*1500

950

150*350

300-800

220

83

PE-1500*1800

1500*1800

1200

220-350

450-1000

355

122

PEX-150*750

150*750

120

18-48

8-25.6

15

3.5

PEX-250*1000

250*1000

210

25-60

16-51.2

37/30

6.5

PEX-250*1200

250*1200

210

25-60

20-60

37

7.7

PEX-300*1300

300*1300

250

20-90

20-104

75

11

Note: If the parameters are updated, please contact us without further notice.

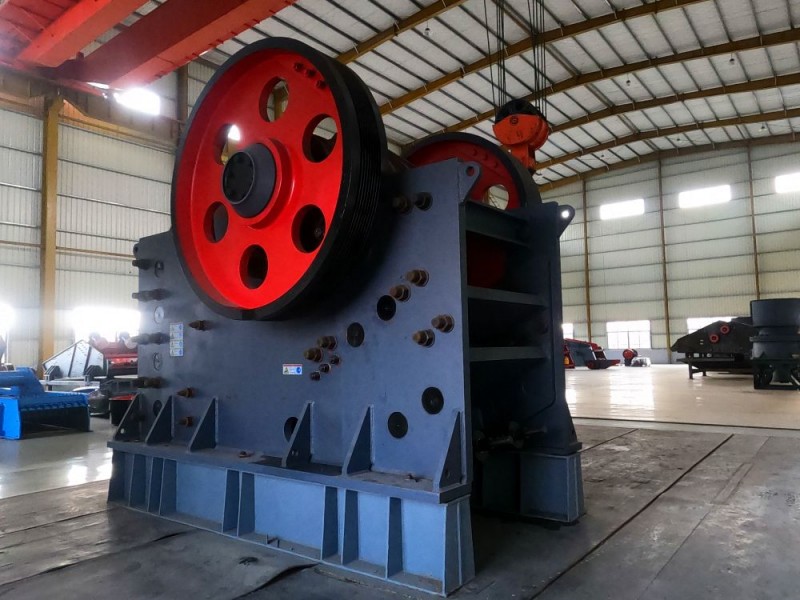

Jaw crusher factory picture:

颚式破碎机

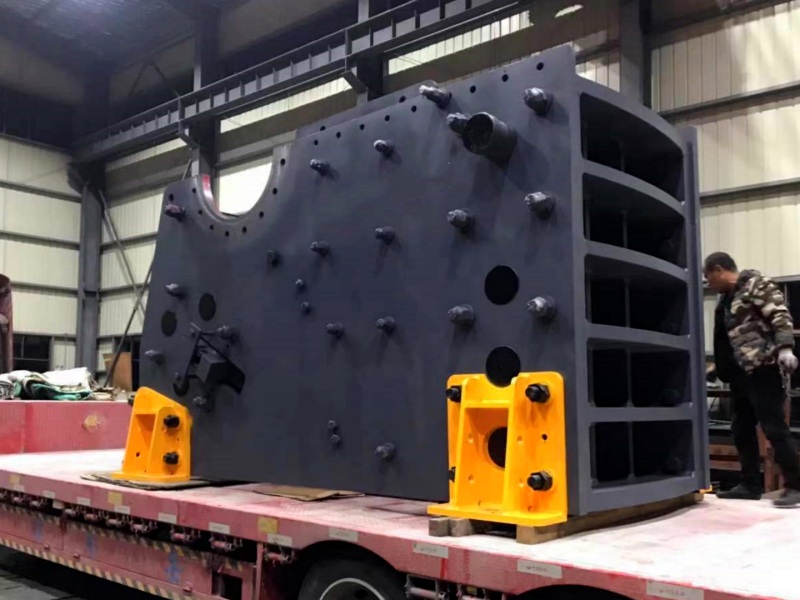

Pictures of jaw crusher shipment:

PE颚式破碎机发货

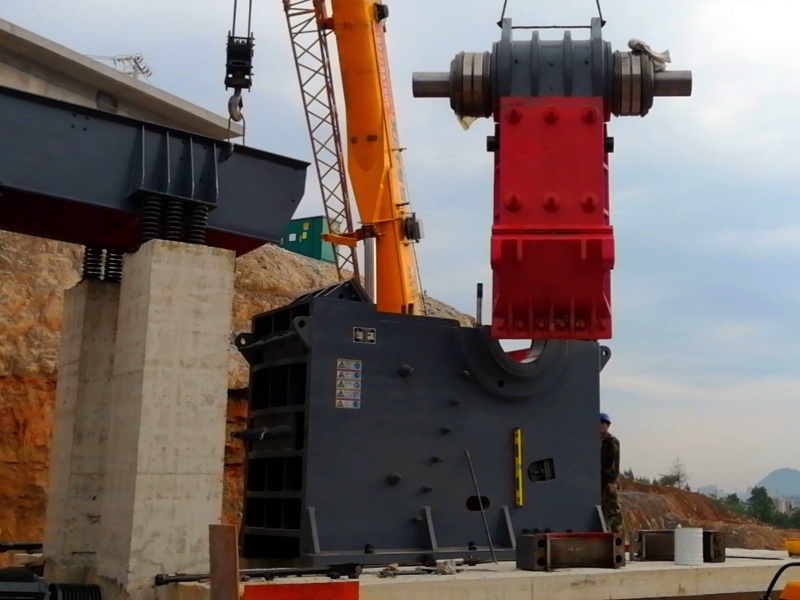

Pictures of jaw crusher scene:

PE颚式破碎机






Jaw Crusher Video:

Jaw crusher price:
The price is determined by the model chosen by the customer, so please call for it.
